Eastern Foundry & Fittings Inc.

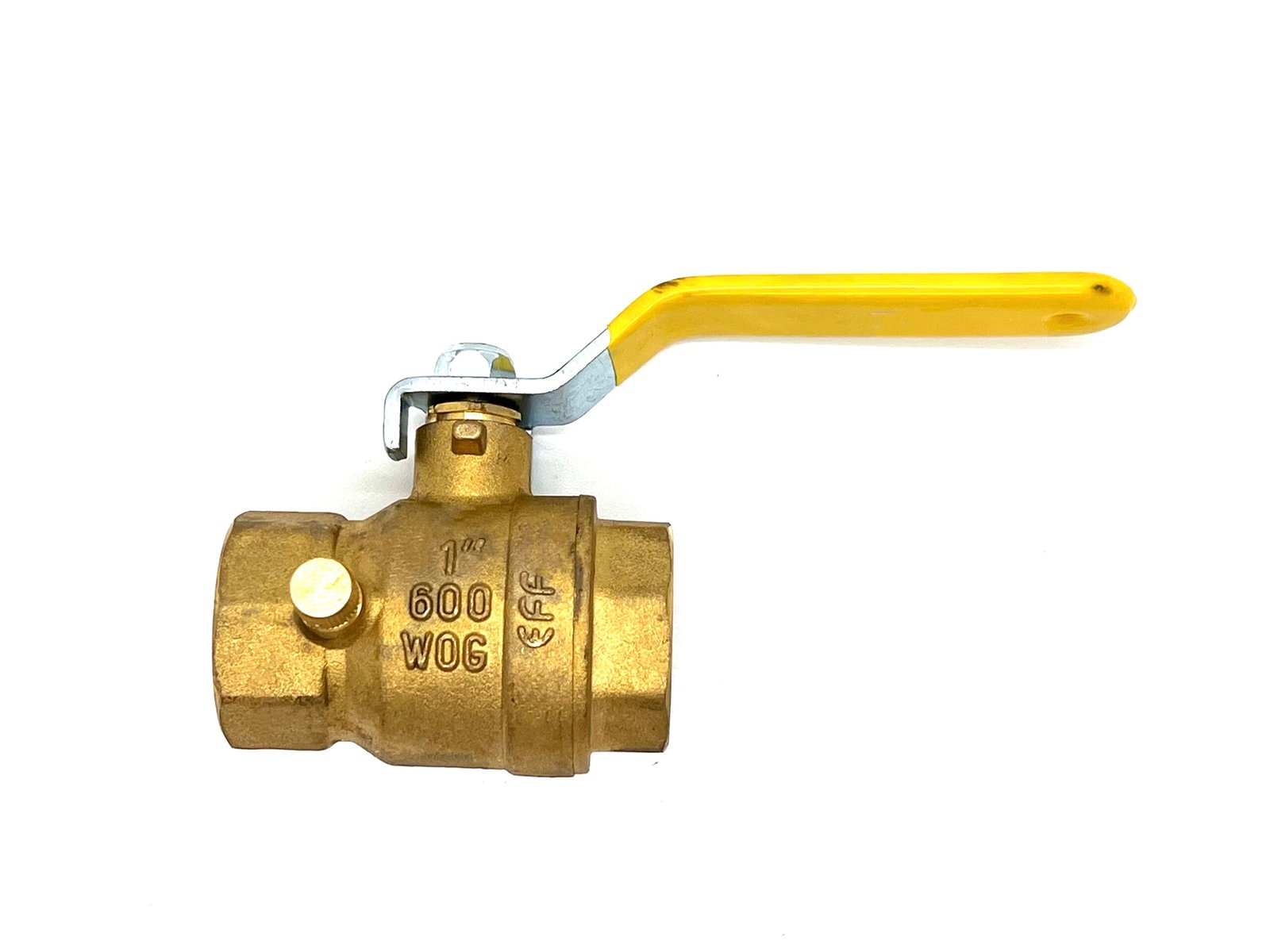

Leaded Threaded Full Port Ball Valves With Drain

Features

  • 2 piece forged brass construction
  • Dual PTFE Seats & EPDM O-Rings
  • Blow-out proof Triple Seal Stem
  • Rust resistant handle
  • Stainless Steel Ball (1/2” to 1”)

Available In

  • EFFDN-01 1/2" NPT Full Port Brass Ball Valve + Drain
  • EFFDN-02 3/8" NPT Full Port Brass Ball Valve + Drain
  • EFFDN-03 1/2" NPT Full Port Brass Ball Valve + Drain

any questions?

Specification

  • 1/2" to 1"
  • Handle Type: PVC Coated Steel Lever Handle
  • Design: Full Port
  • Connection type: FPT

Certification

  • CSA 3.16 Certified for 125 psig Rating for Outdoor Use
  • CSA BRS 125G Certifiled For 125 psig Use
  • CSA 5G CR91-002 Certified for 5 psig GAS Valve 1/4"-2" NPT
  • CSA CAN/CGA 9.1 Certified for 1/2 psig Gas Appliance
  • UL 842,842A, 842B, 87C Approved 1/4" Thru 1" Less Drain
  • MSS SP - 110 Compliant
  • CRN Registered

Performance Rating

  • 1/2” to 1” rated 600 W.O.G.
